Products Description
High Stability RLT Series RF CO2 Lasers
Yongli RLT-30 adopts full metal and complete sealed structure wit small size ,free maintenance, and high beam quality.The output power is stable and can be adjusted conveniently.
Technical Parameters
|
Model NO.
|
RLT-30/RLT-60
|
|
Wavelength
|
10.6μm(Customizable 9.3μm)
|
|
Optical Output Power
|
30W/60W
|
|
Beam Mode
|
TEM00
|
|
Power stability
|
±5%
|
|
Mode quality
|
M2<1.2
|
|
Beam Divergence (mrad, full angle)
|
≤7.5±0.5
|
|
Beam Size
|
1.8±0.2mm
|
|
Beam divergence angle
|
7.5±0.5m Radian full angle
|
|
Polarization
|
>100 to 1 (fixed linear, parallel to width)
|
|
Operating frequency and duty cycle
|
0-25kHz, 0 to 100% DC
|
|
Input voltage
|
DC48V±2%/20A
|
|
Working Life expectancy
|
40,000 Hours
|
|
Warranty
|
24 Months
|
|
Heat load
|
<575w
|
|
Cooling Method
|
Air Cooling/ Water Cooling(6L/M)
|
|
Maximum case temperature
|
<60ºC(140ºF)
|
|
Ambient temperature at work
|
5~40ºC(41~104ºF)
|
|
Operating Altitude
|
<2000m(6,500ft.)
|
|
Operating Humidity
|
Non-condensing
|
|
Shipping and storage environments
|
-10~60ºC(14~140ºF), Non-condensing
|
|
Weight
|
6.2KG/10.5KG
|
|
Size(L×W×H)
|
357×92.5×142mm(14.1×3.64×5.59in.)/530x92x154mm
|
Product Details

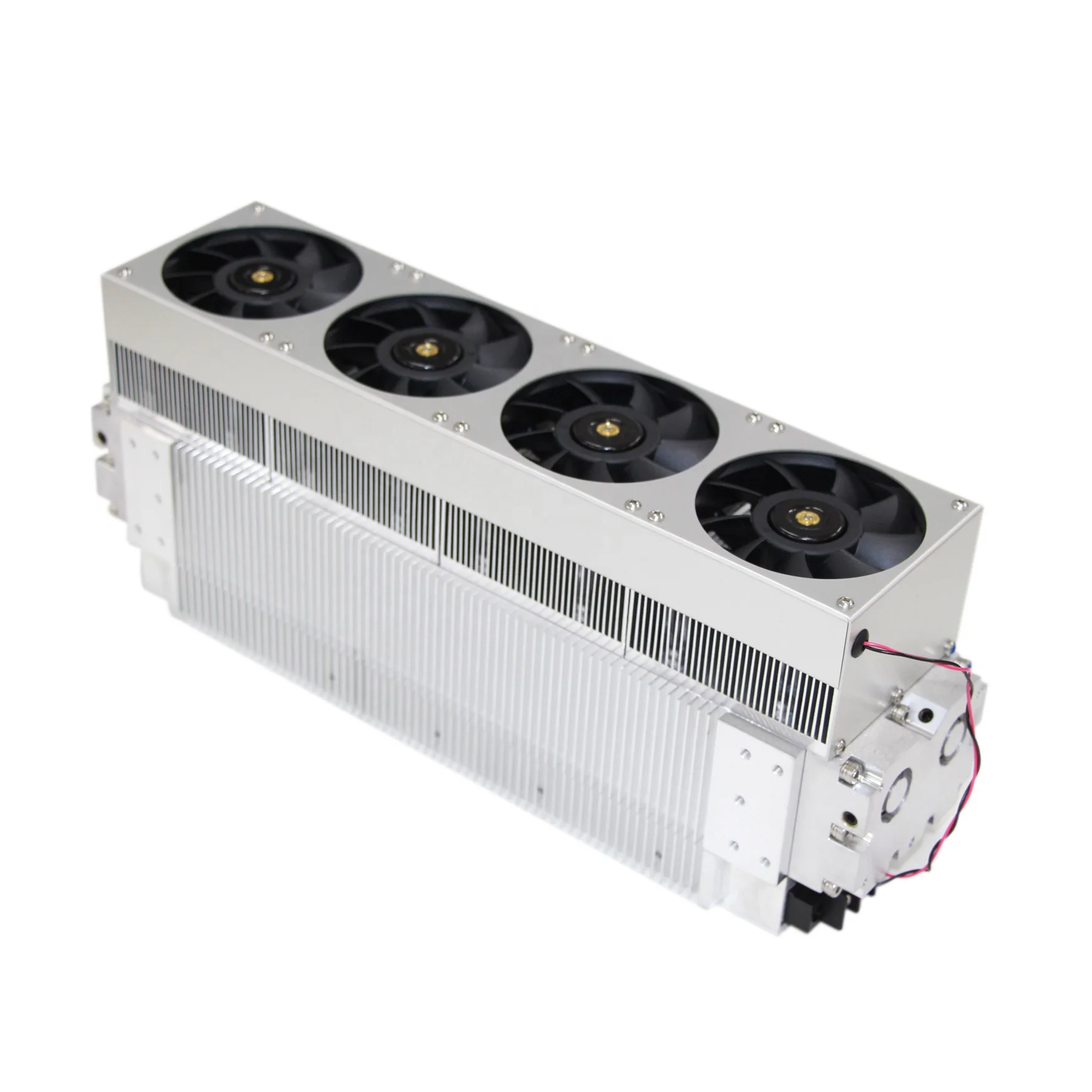

RLT-30 30W RF LASER TUBE
Working substance: mainly a mixed gas composed of carbon dioxide, helium, nitrogen, etc.
Excitation source: RF power is used as excitation source.
Service life: YongLi 30w/60w CO2 RF Laser Metal Tube has a lifespan of more than 40,000 hours. It can generally be used for 6-8 years, and it can be used repeatedly without replacement; while the glass tube marking machine is only about 2500 hours, usually replaced every six months. The glass tube is not reusable and needs to be replaced.
Service life: YongLi 30w/60w CO2 RF Laser Metal Tube has a lifespan of more than 40,000 hours. It can generally be used for 6-8 years, and it can be used repeatedly without replacement; while the glass tube marking machine is only about 2500 hours, usually replaced every six months. The glass tube is not reusable and needs to be replaced.
One of the primary differences and technological advancements that is incorporated in this design is the resonator. Latest release is model RLT-30/RLT-60 with 30/60 Watts and 9.3 µm wavelength.

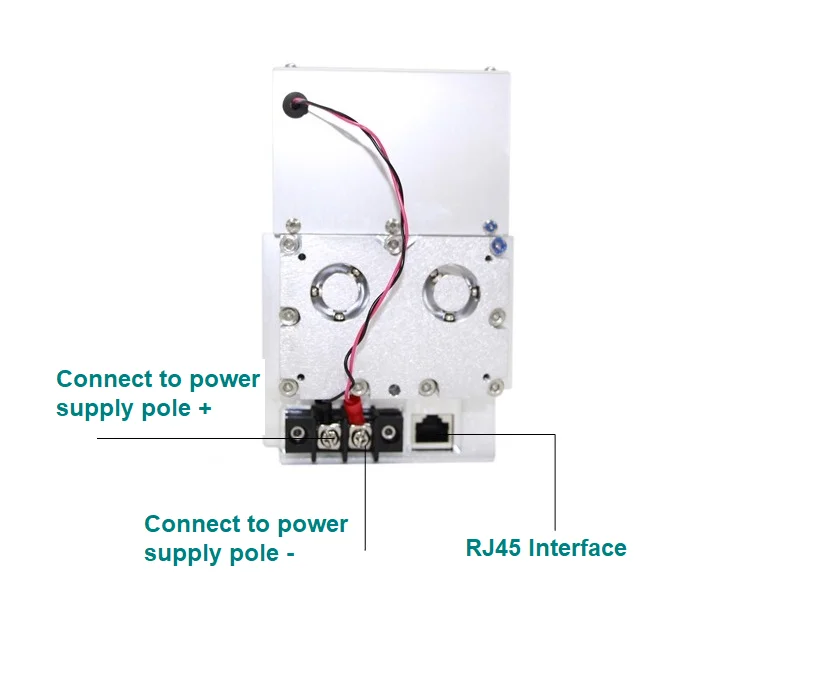

Simplify Integration YongLi RF Co2 Laser Metal Tube
Spot size (beam): CO2 radio frequency tube laser marking machine has a fine spot of 0.07mm, which is more than 3 times finer than glass tube, high precision, small thermal diffusion area, and can work on skin with very good effect.
Stability: The RF tube is a fully sealed metal tube and uses a 48kV low-voltage power supply, which directly avoids some of the disadvantages caused by the use of high-voltage power; Convenient and adjustable output power, excellent stability and high operational reliability
Stability: The RF tube is a fully sealed metal tube and uses a 48kV low-voltage power supply, which directly avoids some of the disadvantages caused by the use of high-voltage power; Convenient and adjustable output power, excellent stability and high operational reliability
The RLT-30’s/RLT-60’s resonator is a Z-folded (2-fold) resonator. This allows for a smaller package design when compared with other 30/60 Watt CO2 RF laser tubes and is the shortest (folded) resonator in the 30 – 60 watt CO2 laser class, but has a remarkably long (unfolded) resonator length, resulting in high stability.
This provides superior power and beam diameter stability. Early test have shown the from-cold power stability in the ±2% range.
This provides superior power and beam diameter stability. Early test have shown the from-cold power stability in the ±2% range.
Application
RF Laser Tube For Fractional Medical Treatment System
-CO2 Fractional Laser Scare Removal Skin Resurfacing Device
-CO2 laser therapy
-RF Stretch Marks Removal
-RF Tube Laser Generator Vaginal Tightening Laser
-Cosmetology surgery apparatus
-CO2 laser therapy
-RF Stretch Marks Removal
-RF Tube Laser Generator Vaginal Tightening Laser
-Cosmetology surgery apparatus
Advanced fractional CO2 Laser, it has best beam quality with RF Laser METAL TUBE. For skin resurfacing&rejuvenation with less down time, RF Metal tube from YONGLI guarantees its stable and minimized beam size for minimized PIH and Downtime
